商品の詳細:
お支払配送条件:
|
| 力率: | > 0.95 | 保護グレード: | IP66 |
|---|---|---|---|
| サイズ: | 555*210*143mm | 入力電圧: | AC100-277V |
| ドライバ: | Inventronics | 労働寿命: | >70000時間 |
| 色温: | 3000k 4000k 5700k 6500k | 重さ: | 2.9キロ |
| ハイライト: | AC100-277V LED street light,energy-saving LED street fixture,110-150 Lm/w street light |
||
| Attribute | Value |
|---|---|
| Power Factor | >0.95 |
| Protection Grade | IP66 |
| Size | 555*210*143mm |
| Input Voltage | AC100-277V |
| Driver | Inventronics, MOSO, SOSEN, Philips, Osram |
| Working Lifetime | >70000hrs |
| Color Temperature | 3000k 4000k 5700k 6500k |
| Weight | 2.9 KG |

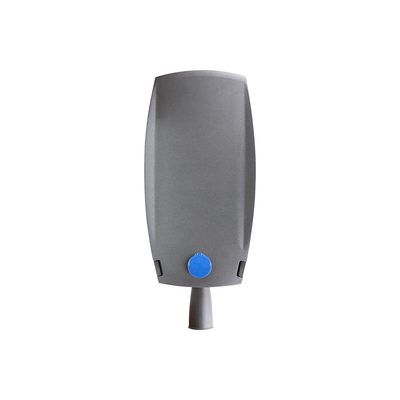

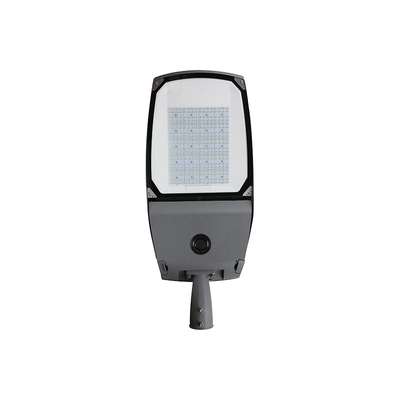

The LED Street Light Fixtures offer a versatile range of power options from 30W to 300W, providing flexibility for various lighting needs. Weighing just 2.9 KG with compact dimensions of 555*210*143mm, these fixtures are lightweight yet durable for easy installation and maintenance.
With a high power factor exceeding 0.95, these fixtures ensure efficient power utilization, resulting in cost savings and reduced energy consumption. The advanced technology maximizes electricity conversion into usable light, making them an environmentally friendly solution.
Equipped with a projector lamp module, these fixtures deliver focused, uniform lighting for enhanced visibility and safety. The adjustable street tilt adapter allows customizable lighting angles for optimal coverage in any outdoor setting.
| Model | SL-25-40M | SL-25-100M | SL-25-150M | SL-25-240M |
|---|---|---|---|---|
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/180/200 | 240/300 |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/70mm |
| Installation Height (m) | 3-8 | 6-10 | 8-12 | 10-14 |
| Input Voltage | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| Light source | LED | LED | LED | LED |
| Luminaire efficacy (lm/W) | 130-170 | 130-170 | 130-170 | 130-170 |
The Crescent SL-25 series LED street lights offer comprehensive lighting solutions for road and street applications, meeting international standards including ENEC, CB, CE, EMC, LM79, and RoHS compliance.
Featuring wattages from 30 to 320W with ultra-high luminous efficiency and various lighting distribution options. The intelligent control system includes timing dimming, 0-10v dimming, Dali, Zigbee, and NB-IoT for versatile lighting scenarios.
Customization services available with the following specifications:
Each LED Street Light Fixture is carefully packed in sturdy cardboard boxes with protective material to prevent damage during shipping. Packages are securely sealed and labeled for easy identification, with tracking numbers provided for shipment monitoring.
