| Power: | 200w | Installation Pipe Diameter: | φ60mm |
|---|---|---|---|
| Product Size: | 449*360*152mm | LED: | Lumileds 3030 or 5050 |
| Driver: | philips sosen | Color Temperature: | 2700K 3000k 400k 5700k |
| ハイライト: | 200W aluminum LED street light,outdoor LED road light 3030,5050 LED street lighting |
||
| Attribute | Value |
|---|---|
| Power | 200W |
| Installation Pipe Diameter | φ60mm |
| Product Size | 449*360*152mm |
| LED | Lumileds 3030 or 5050 |
| Driver | Philips Sosen |
| Color Temperature | 2700K, 3000K, 4000K, 5700K |
| Model | Installation Pipe Diameter | Product Size (mm) |
|---|---|---|
| YASL-26-50 | Φ60 | 449 × 360 × 152 |
| YASL-26-100 | Φ60 | 529 × 360 × 152 |
| YASL-26-150 | Φ60 | 609 × 360 × 152 |
| YASL-26-200 | Φ60 | 689 × 360 × 152 |
| YASL-26-250 | Φ60 | 769 × 360 × 152 |
| YASL-26-300 | Φ60 | 849 × 360 × 152 |
| Materials | Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws |
| Color | Customizable according to international color card |
| LED Brand | LUMILEDS, OSRAM, CREE option |
| LED Specifications | 3030, 5050 option |
| Optical Effect | 130-180 lm/w options |
| Color Temperature | 2700K-6500K options (Reference: Energy Star) |
| Color Rendering Index | Ra≥70; Ra≥80; Ra≥90 option |
| Optics | TYPE I-V options |
| Driver Brand | OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS |
| Input Voltage | AC90-305V |
| Security Level | Class I/II/1/2 option |
| Frequency Range | 43-63Hz |
| Power Factor | PF≥0.95 |
| Working Conditions | -30 to 45°C, 20% to 90% RH |
| Dimming Mode | Time control/0-10V/Optical control/DALI option |
| Lightning Protection | 10KV/15KV/20KV option |
| Warranty | 5/8 year option |
| Protection | Overcurrent/Short circuit/Over temperature |
| Protection Level | IP66; IK08/09/10 |
| Certifications | ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |
Installing Ways: Both horizontal and vertical available with adjustable angle (-15° to 15°)
Material: Die casting aluminum body

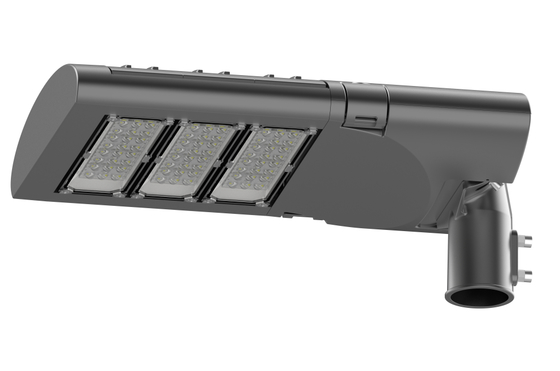

This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. The LED chips can reach up to 130 lm/W, and the street light is equipped with light-control for automatic regulation at dusk and dawn.
This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. It includes optional sensor control, making it ideal for lighting security in public places.
The light also includes a built-in photocell that automatically switches the light off at dusk and on at dawn. Its low-energy consumption makes it excellent for parking lots, with potential savings of up to 80% on electricity bills.
