| Power: | 200w-300w | Installation Pipe Diameter: | φ60mm |
|---|---|---|---|
| Product Size: | 769*360*152mm | LED: | Lumileds 3030 or 5050 |
| Driver: | philips sosen | Color Temperature: | 2700K 3000k 400k 5700k |
| ハイライト: | customizable outdoor LED street lights,energy-saving LED street lighting,effective outdoor LED street lamps |
||
| Attribute | Value |
|---|---|
| Power | 200w-300w |
| Installation Pipe Diameter | φ60mm |
| Product Size | 769*360*152mm |
| LED | Lumileds 3030 or 5050 |
| Driver | Philips Sosen |
| Color Temperature | 2700K 3000k 400k 5700k |

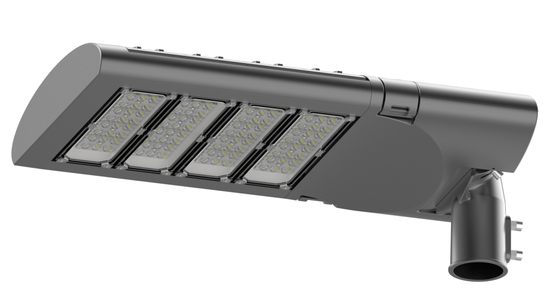

Module Street Light SL-26
| Model | Installation Pipe Diameter | Product Size (mm) | ||
|---|---|---|---|---|
| YASL-26-50 | Φ60 | 449 | 360 | 152 |
| YASL-26-100 | Φ60 | 529 | 360 | 152 |
| YASL-26-150 | Φ60 | 609 | 360 | 152 |
| YASL-26-200 | Φ60 | 689 | 360 | 152 |
| YA SL-26-250 | Φ60 | 769 | 360 | 152 |
| YASL-26-300 | Φ60 | 849 | 360 | 152 |
| Materials | Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws |
| Color | Other colors can be customized according to the international color card |
| LED Brand | LUMILEDS, OSRAM, CREE option |
| LED Specifications | 3030, 5050 option |
| Optical Effect | 130～140 lm/w, 140～150 lm/w, 150～160 lm/w, 160～170 lm/w, 170～180 lm/w option |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K option (Reference: Energy Star) |
| Color Rendering Index | Ra≥70; Ra≥80; Ra≥90 option |
| Optics | TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV option |
| Driver Brand | OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS |
| Input Voltage | AC90～305V |
| Security Level | Class I/Class II/Class 1/Class 2 option |
| Frequency Range | 43～63Hz |
| Power Factor | PF≥0.95 |
| Working Conditions Range | -30 to 45℃, 20% to 90% RH |
| Dimming Mode | Time control/0-10V/Optical control/DALI option |
| Lightning Protection | 10KV/15KV/20KV option |
| Warranty | 5/8 year option |
| Protection | Overcurrent/Short circuit/Over temperature |
| Protection Level | IP66; IK08/09/10 |
| Certifications | ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |
This IP66 outdoor LED street light can withstand a range of outdoor environments. Its high-quality aluminum housing and tempered glass lens offer excellent protection. The LED chips can reach up to 130 lm/W, and the street light is equipped with light-control, which helps regulate light automatically at dusk and dawn.
This aluminum LED street light is made of die-cast aluminum and is designed for alleys, overpasses, and residential areas. Its high luminous efficacy and low failure rate make it ideal for these locations. Moreover, it is energy-efficient and can cut power consumption by 60%. It is equipped with optional sensor control, making it an ideal option for lighting security in public places.
The 100W aluminum LED street light also includes a built-in photocell, which automatically switches the light off at dusk and turns on at dawn. Its low-energy consumption is also great for parking lots. This LED street light can save up to 80% of electricity bills, making it an ideal solution for parking lot lighting needs.
