商品の詳細:
お支払配送条件:
|
| 材料: | 鋳型アルミ | 力: | 90-150W |
|---|---|---|---|
| 入力電圧: | 220-240VAC | 光学効果: | 130~150lm/w(オプション) |
| Protectinの等級: | IP66 | 保護レベル: | IK08 |
| 力率: | PF≥0.95 | カラーレンダリングインデックス: | RA≥70 |
| 周波数範囲: | 50/60Hz | 労働条件の範囲: | -40°C~45°C 20%~90%RH |
| サイズ: | 445×210×75mm | ||

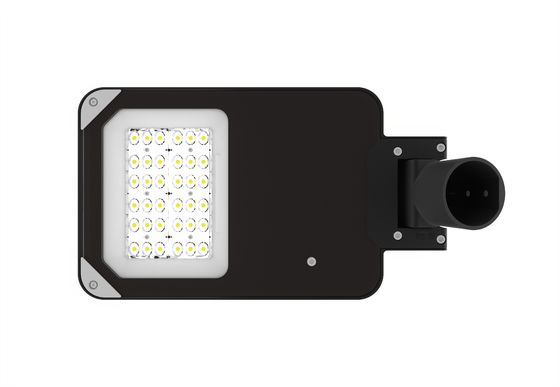

| ハイライト: | Aluminium IP66 outdoor LED street light,80W LED street light housing,5050 LED street light IP66 |
||
| Item No. | YASL-37-40 |
|---|---|
| Power | 40W |
| Lumen Efficiency | 130lm/w |
| Product Size (mm) | 445X250X75 |
| Working Voltage | AC100-265V 丨 50/60Hz |
|---|---|
| LED | LUMILEDS / OSRAM / CREE |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | Ra>70 (standard)/ Ra>80 |
| Driver | PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/IEVENTRONICS |
| THD | <15% |
| Power Factor (PF) | PF>0.9 |
| IP Rating | IP66 |
|---|---|
| IK Rating | 1K09 |
| Holder | 60mm |
| Body Material | High pressure die-cast aluminum |
| Housing Color | Dark Grey/Black/Light Grey (available on request) |
| Cover Material | UV-resistant Polycarbonate |
| Working Environment | -20℃ ~+50℃, 10%~90%RH |
|---|---|
| Lifespan L70 at 25℃ | > 50,000hrs |
| Mounting Type | Side entry or Vertical pole mounted ±15° |
|---|---|
| Dimmable | 1-10V Dimming /Timer Dimming |
| Protection Class | Class I (standard) / Class Ⅱ |
